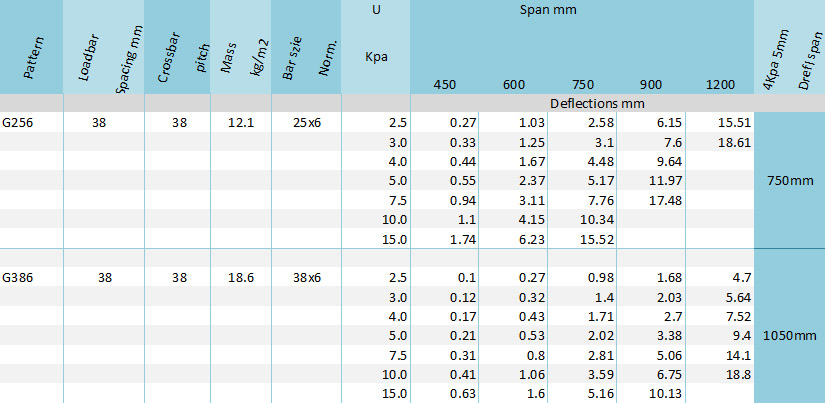

Notes: 1. Deflection have been limited to 18mm>
U = Uniformly distributed load in Kpa

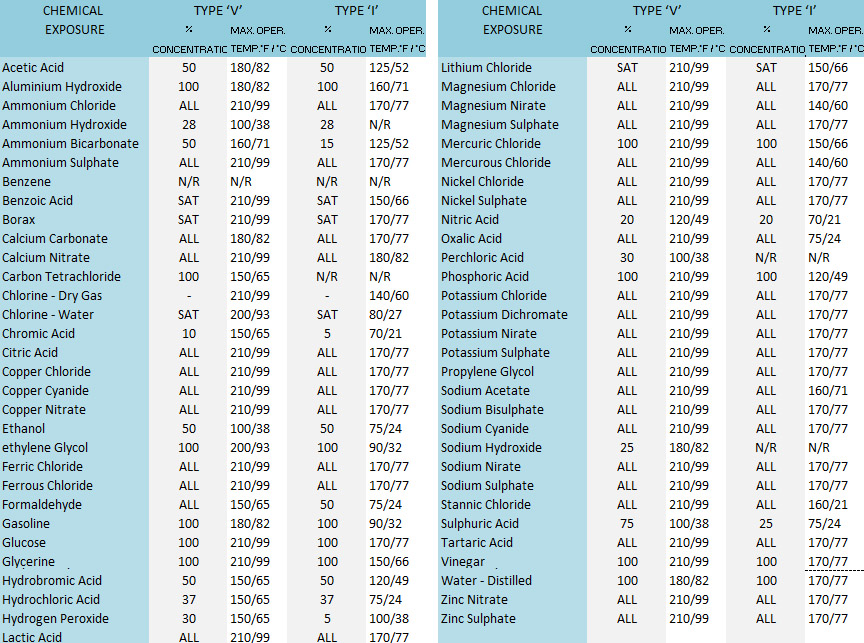

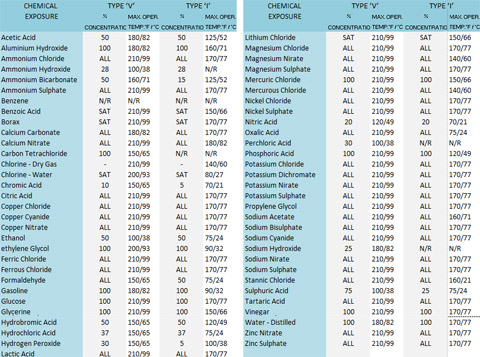

ALL - All Concentrations SAT - Saturated Solution N/R - Not Recommended
The corrosion resistance data listed above is for general information only.
Resin manufacturers have provided test data which indicates the specific resin can withstand the corrosion conditions listed above.
TCMY believes the data to be true and accurate but no guarantee is expressed or implied as to specific performance.
Testing for specific environments is recommended.
Notes: 1. Deflection have been limited to 18mm>
U = Uniformly distributed load in Kpa
As per standard grating clearances, click .
